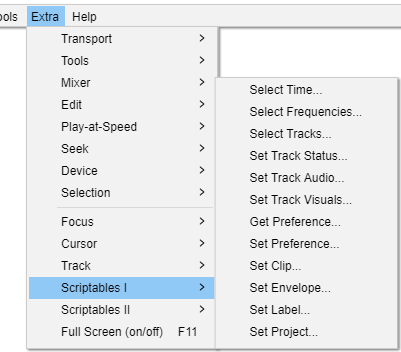

The Extra > Scriptables I menu provides commands typically used in scripting, for example via Macros or Python.
The Extra menu provides access to additional Commands that are not available in the normal default Audacity menusThe Help Menu lets you find out more about the Audacity application and how to use it.  It also includes some diagnostic tools.Extra commands related to play and recordExtra commands to select the toolExtra commands related to volumeExtra commands related to editingExtra commands related to play at speedExtra commands related to seekingExtra commands related to selecting a deviceExtra commands related to selectingExtra commands to set focus, usually focus on one trackExtra commands to move the cursorExtra commands to operate on a track that has focusThese commands were originally written for scripting Audacity, e.g via a Python script that use mod-script-pipeLike Scriptables I, but these ones are less commonly used from the menuToggle full screen mode with no title barSelects audioSelects audioSelects audio.  Start and End are timeSets properties for a track or channel (or both).Sets properties for a track or channel (or both)Sets properties for a track or channel (or both)Gets a single preference setting.Sets a single preference settingModify a clip by stating the track or channel a time within itModify an envelope by specifying a track or channel and a time within it.  You can't yet delete individual envelope points, but can delete the whole envelope using Delete=1.Modifies an existing label.  You must give it the label number.Sets the project window to a particular location and size.  Can also change the caption - but that is cosmetic and may be overwritten again  later by Audacity.The MenusExtra-Scriptables IMenu.png
Click for details
Click on the image to learn more






These commands were originally written for scripting Audacity, e.g via a Python script that uses mod-script-pipe. The commands though are also present in the menu, available from Macros, and available from within Nyquist using (aud-do "command")
Bulb icon Many of these commands have optional values.
  • Where the dialog shows a checkbox with no label, leaving the box unticked leaves the corresponding value unchanged.
  • When using the same command in scripting, leaving the value out entirely has the same effect.


Select <something>

The Select Time, Select Frequencies and Select Tracks options all are used to select audio. There is also a Select dialog that combines all three.

Bulb icon Many more complex macros and scripting depend on the select command.

It is worth spending time to understand the options in this command.
It can be useful to leave some of the values unset, for example to leave the selected times unchanged but to modify which tracks are selected.


Select Time

Select Time.png


  • Start Time and End Time are times.
    • Normally they are times in seconds as shown by the ruler.
    • However setting Relative To to a value other than 'Project Start' will give other behaviour.
Relative To Meaning
Project Start Start and end times are both relative to the ruler, starting at 0.
Project Start time is relative to the ruler time 0. End time is relative to the end of the project.
Project End Both times are relative to the end of the project and are measured right to left.
Bulb icon Use "Relative To" 'Project End' to select from the end of the track, for example to fade out at the end of the track.
Selection Start Start and end times are both relative to the start of the selection.
Selection Start time is relative to the start of the selection. End time is relative to the end of the selection.
Bulb icon Use "Relative To" 'Selection' and 'Start Time' =-0.5, 'End Time' =+0.5 to expand the selection by 1 second.
Selection End Both times are relative to the end of the selection and are measured right to left.
Bulb icon Use "Relative To" 'Selection End' and 'Start Time' =0, 'End Time' =0 to collapse the selection to its right boundary.

Select Frequencies

Select Frequencies.png

  • High and Low are for spectral selection.
    • They select a frequency range which is relevant in certain effects.

Select Tracks

Select Tracks.png


  • First Track is the number of the first track, starting at 0.
  • Track Count is the number of tracks. The default is 1.
    • You can set Track Count to 0 to select no tracks (there can still be a time selection in that case).
    • Very occasionally useful, First Track and Track Count can both use fractional values, like 0.5, which can be used to select a channel of a stereo track.
      • One use of selecting a channel rather than a whole track, is in a script to resize the two channels of a stereo track to different heights.
  • The Mode parameter allows arbitrary track selections, e.g adding or removing tracks from the current track selection.



Set Track <Something>

The Set Track Status, Set Track Audio and Set Track Visuals dialogs all set properties of the currently selected tracks. There is also a compound version of the dialog that combines all three.

Set Track Status

Set Track Status.png

Set Track Audio

Set Track Audio.png

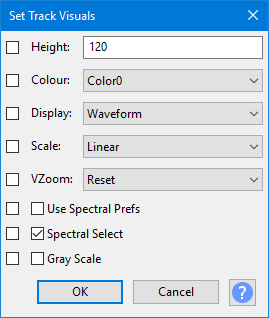

Set Track Visuals

Set Track Visuals.png


Sets properties for a track or channel (or both). Setting one channel of a stereo track can lead to interesting results. That's most used when setting relative sizing of the two channels.
SpectralPrefs=1 sets the track to use general preferences, SpectralPrefs=0 per track prefs. When using general preferences, SetPreference can be used to change a preference and so affect display of the track.
Name is used to set the name. It is not used in choosing the track.


Get Preference

Get Preference.png

Gets a single preference setting.

Bulb icon 'GetInfo: Preferences' is often more useful. It gets a list of preferences all at once


Set Preference

Set Preference.png

Sets a single preference setting. Some settings such as changing the theme require a reload (use Reload=1), but reload takes time and slows down a script.


Set Clip

Set Clip.png

Modify a clip by stating the track or channel and a time within it.
Colour and start position can be set.
Try to avoid overlapping clips, as Audacity will allow it, but does not like them.


Set Envelope

Set Envelope.png

Modify an envelope by specifying a track or channel and a time within it.
You cannot yet delete individual envelope points, but can delete envelopes (that contain the chosen time) using Delete=1.


Set Label

Set Label.png

Modifies an existing label. You must give it the label number.

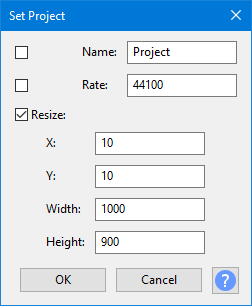

Set Project

Set Project.png

Sets the project window to a particular location and size. Also sets the Project Rate. Can also change the caption - but that is cosmetic and may be overwritten again later by Audacity.
